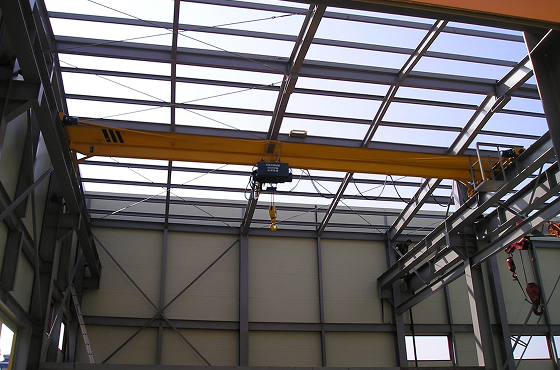

Single Girder Electric Overhead Travelling Cranes

At Techfil, we design and manufacture lightweight and efficient Single Girder EOT Cranes with capacities from 250 kg to 15T and spans up to 30 meters. Built for safety and performance, they are ideal for manufacturing units, workshops, warehouses, and assembly lines. Our cranes integrate seamlessly into any facility, ensuring durability, reliability, and enhanced material handling efficiency.

TECHNICAL SPECIFICATIONS

CAPACITY (T) 250KG To 15T
SPAN (M) Up to 30 Mtrs
HEIGHT OF LIFT (M) Up to 12 Mtrs
LOCATION Indoor
AMBIENT TEMPERATURE (Degree Celsius) 45’C
CRANE CONTROL Pendant, Radio Remote Control
POWER SOURCE Shrouded Bus Bar, Enclosed Type Bus Bar, Power Cables
OPERATING THROUGH Chain Hoist, SG Hoist, Suspension Hoist,
Creep Hoist
MANUFACTURING STANDARD IS 3177 & 807 / M5 Duty Class 2

Advantages :

  • Safe and smooth operation
  • Durable and low-maintenance design
  • Service-friendly construction
  • Compact and space-efficient
  • Consistent high-performance output
  • Enhanced structural integrity
  • Reliable, maintenance-free sealed bearings
Features Optional Features
Bridge lights Load cell indicator with / without display
Siren with hooter 2 or more hoist on same girder with / without sync
Limit switch Anti sway control systems
VFD – Variable frequency drive Remote monitoring of crane
Mechanical buffers Radio remote control
Anti frictional bearings Walkways
Energy efficient motors Cross pulling sensors
For control panels & motors with IP55 protection CT, LT, hoist – dual speed motion, with creep speed ranging up to 20%
Shrouded DSL Festoon cable track system

DGEOT

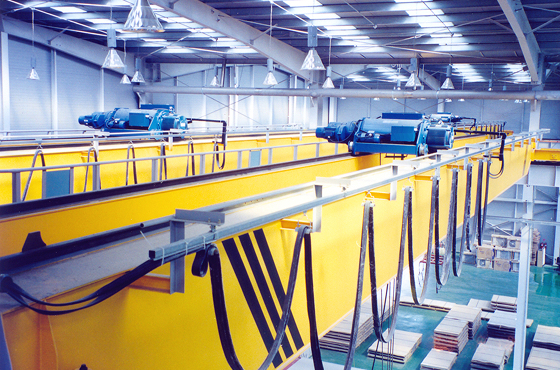

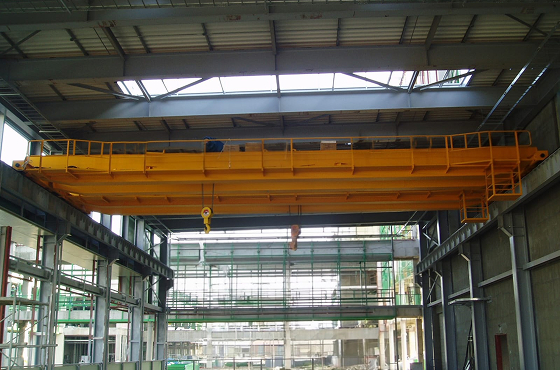

Double Girder Electric Overhead Travelling Cranes

At Techfil Engineering, we manufacture Double Girder EOT Cranes designed for heavy-duty, high-speed operations in industries like steel, metal, and fabrication. With capacities from 3T to over 500T, they offer customizable configurations and advanced safety features for precise and reliable material handling. Our cranes are ideal for both new installations and facility upgrades.

TECHNICAL SPECIFICATIONS

Capacity (T) 5T to 100T
Span (m) Up to 30 mtrs
Height of lift (m) Up to 12 mtrs
Location Indoor
Ambient temperature (°C) 45°C
Crane control
  • Pendant
  • Radio remote control
Power source
  • Shrouded bus bar
  • Enclosed type bus bar
Operating through
  • Crab hoist
  • Main & aux type hoist
  • Creep crab hoist
Manufacturing standard IS 3177 & 807 / M5 Duty Class 2

Advantages :

  • Safe and smooth operation with advanced features
  • Optimized structure for reduced headroom and efficient shed design
  • Easy access to components for simplified maintenance
  • Robust and compact design using advanced technology
  • Enhanced floor space utilization with minimal end clearance
  • Reliable and consistent high performance
  • Proven durability and operational reliability
  • Maintenance-free sealed bearings for long-term use
Features Optional Features
Bridge lights Load cell indicator with / without display
Siren with hooter 2 or more hoist on same girder with / without sync
Limit switch Anti sway control systems
VFD – Variable frequency drive Remote monitoring of crane
Mechanical buffers Radio remote control
Anti frictional bearings Walkways
Energy efficient motors Cross pulling sensors
For control panels & motors with IP55 protection CT, LT, hoist – dual speed motion, with creep speed ranging up to 20%
Shrouded DSL Festoon cable track system

EOT

Underslung Cranes

At Techfil Engineering, we design Underslung Cranes that are perfect for facilities with limited space or unique structural constraints. Mounted directly to the building structure without the need for supporting columns, these cranes offer smooth and efficient material handling for light to medium loads. They are ideal for optimizing workflow in warehouses, workshops, and production units.

TECHNICAL SPECIFICATIONS

Capacity (T) 500KG to 20T
Span (M) Up to 30 Mtrs
Height of Lift (M) Up to 12 Mtrs
Location Indoor
Ambient Temperature (°C) 45°C
Crane Control
  • Pendant
  • Radio Remote Control
Power Source
  • Shrouded Bus Bar
  • Enclosed Type Bus Bar
  • Power Cables
Operating Through
  • Chain Hoist
  • SG Hoist
  • Suspension Hoist
  • Creep Hoist
Manufacturing Standard IS 3177 & 807 / M5 Duty Class 2

Advantages :

  • Compact & Space-Optimized Design – Maximizes floor space utilization for efficient workflow.
  • Easy Maintenance – Sealed bearings and accessible components reduce downtime.
  • Best-in-Class Performance – Engineered for precision and durability.
  • Versatile Applications – Ideal for aerospace, aircraft hangars, and wide-span buildings.
  • Extended Coverage – Supports overhang on both sides, allowing loads to move beyond runway tracks.
  • Enhance productivity and efficiency with Techfil’s cutting-edge lifting solutions, designed for strength, flexibility, and reliability.
  • Festoon cable track system
Features Optional Features
Bridge lights Load cell indicator with / without display
Siren with hooter 2 or more hoist on same girder with / without sync
Limit switch Anti sway control systems
VFD – Variable frequency drive Remote monitoring of crane
Mechanical buffers Radio remote control
Anti frictional bearings Cross Pulling Sensors
Energy efficient motors CT, LT, HOIST – Dual Speed Motion, With Creep Speed Ranging up to 20%
For control panels & motors with IP55 protection
Shrouded DSL
Festoon cable track system

EOT

Mono Rail Cranes

At Techfil Engineering, our Monorail Cranes provide a simple yet highly efficient solution for linear material movement. Designed for transporting loads along a fixed path, they are ideal for assembly lines, warehouses, and production areas where streamlined, space-saving lifting operations are essential.

Capacity 0.5 To 5T
Operating Through
  • Chain Hoist
  • SG Hoist
  • Suspension Hoist
  • Creep Hoist
Manufacturing Standard IS 3177 & 807 / M5 Duty Class 2
Span As per customer requirement
Height Of Lift Up to 12 Mtrs  & Above

Advantages :

  • Extended Coverage – Supports overhang on both sides, allowing loads to move beyond runway tracks.
  • Best-in-Class Performance – Engineered for precision and durability.
  • Versatile Applications – Ideal for aerospace, aircraft hangars, and wide-span buildings.
  • Compact & Space-Optimized Design – Maximizes floor space utilization for efficient workflow.
